Software Copilot are a new kind of assistant embedded in your app/product. They are designed to help users get the most out of your app by providing contextual guidance and take actions on their behalf.
Supported Features
Message | Streaming | Elements | Audio | Ask User | Chat History | Chat Profiles | Feedback |
---|
✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
Embedding the Copilot
First, make sure your Chainlit server is running. Then, add the following script at the end of your website’s <body>
tag:
This example assumes your Chainlit server is running on
http://localhost:8000
<head>
<meta charset="utf-8" />
</head>
<body>
<!-- ... -->
<script src="http://localhost:8000/copilot/index.js"></script>
<script>
window.addEventListener("chainlit-call-fn", (e) => {
const { name, args, callback } = e.detail;
callback("You sent: " + args.msg);
});
</script>
<script>
window.mountChainlitWidget({
chainlitServer: "http://localhost:8000",
});
</script>
</body>
Remember the HTML file has to be served by a server, opening it directly in
your browser won’t work. You can use simple HTTP server for tests purpose.

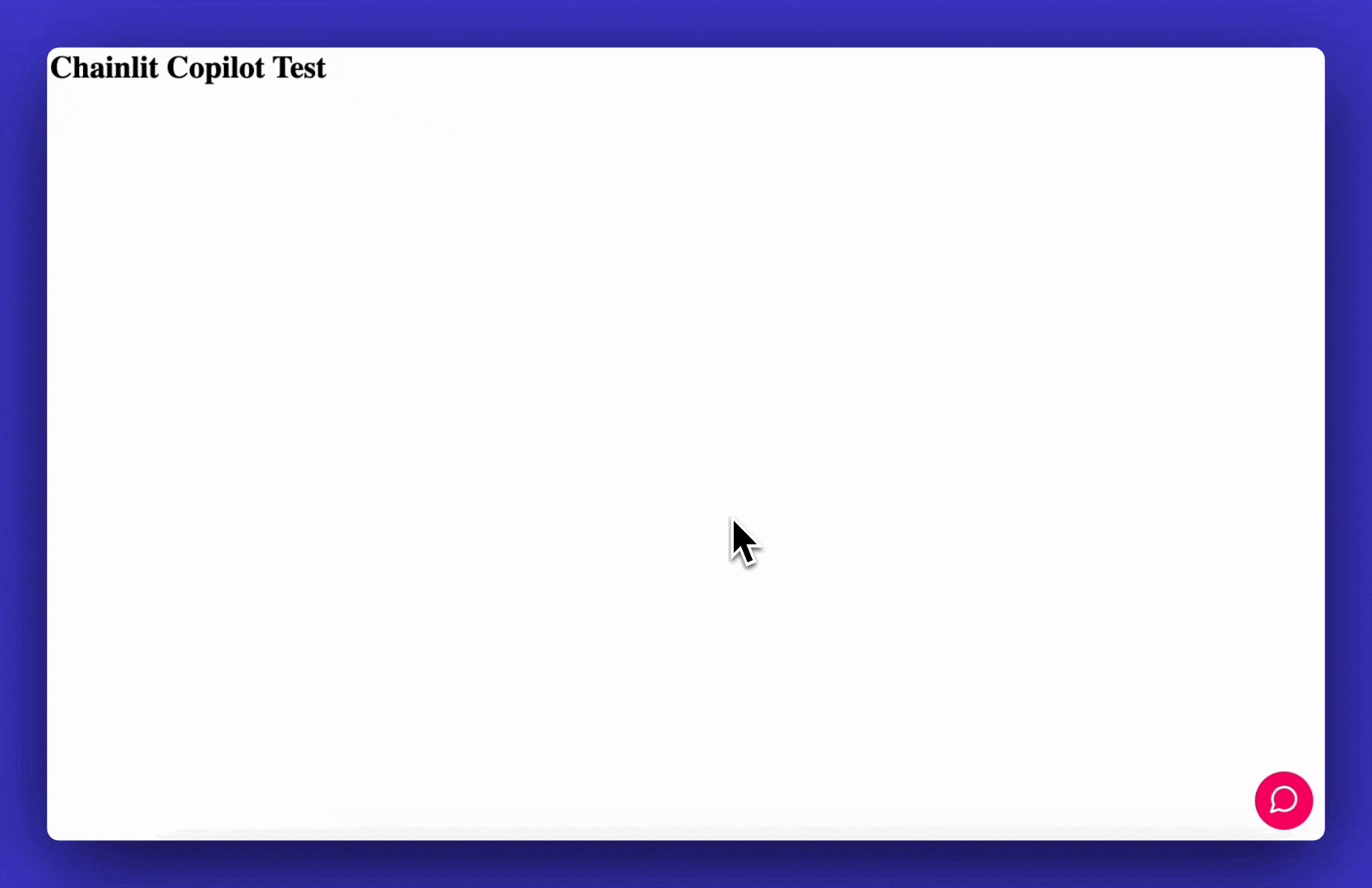

That’s it! You should now see a floating button on the bottom right corner of your website. Clicking on it will open the Copilot.
You can programmatically toggle the copilot with window.toggleChainlitCopilot()
.
Thread Persistence
The Copilot now supports persistent storage of the threadId
in the browser’s localStorage, enabling chat restoration after a page reload. This feature provides two JavaScript utility functions for managing thread persistence:
getChainlitCopilotThreadId()
Retrieves the current threadId from localStorage.
Returns: string | null
- The current threadId or null if not found
const threadId = window.getChainlitCopilotThreadId();
console.log("Current thread ID:", threadId);
clearChainlitCopilotThreadId(newThreadId?)
Clears the existing threadId from localStorage. Optionally sets a new one.
Parameters:
newThreadId?
(optional): string
- A new threadId to set after clearing
// Start a new thread programmatically
window.clearChainlitCopilotThreadId();
// Or with predefined ID
const newThreadId = crypto.randomUUID();
window.clearChainlitCopilotThreadId(newThreadId);
These functions provide developers with greater control over thread management and session continuity in the Copilot experience.
The mountChainlitWidget
function accepts the following options:
export interface IWidgetConfig {
// URL of the Chainlit server
chainlitServer: string;
// Required if authentication is enabled on the server
accessToken?: string;
// Theme of the copilot
theme?: "light" | "dark";
// Custom styling to apply to the widget button
button?: {
// ID of the container element to mount the button to
containerId?: string;
// URL of the image to use as the button icon
imageUrl?: string;
// The tailwind classname to apply to the button
className?: string;
};
// Custom CSS styles in copilot
customCssUrl?: string;
// Allows passing extra query parameters in API requests to the Chainlit server
additionalQueryParamsForAPI?: Record<string, string>;
// Start widget container expanded, i.e. wide
expanded?: boolean;
// Set language of Chainlit's UI
// Defaults to preferred language of the user
// via navigator.language, then to en-US
language?: string;
}
Function Calling
The Copilot can call functions on your website. This is useful for taking actions on behalf of the user. For example, you can call a function to create a new document, or to open a modal.
First, create a CopilotFunction
in your Chainlit server:
import chainlit as cl
@cl.on_message
async def on_message(msg: cl.Message):
if cl.context.session.client_type == "copilot":
fn = cl.CopilotFunction(name="test", args={"msg": msg.content})
res = await fn.acall()
await cl.Message(content=res).send()
Then, in your app/website, add the following event listener:
window.addEventListener("chainlit-call-fn", (e) => {
const { name, args, callback } = e.detail;
if (name === "test") {
console.log(name, args);
callback("You sent: " + args.msg);
}
});
As you can see, the event listener receives the function name, arguments, and a callback function. The callback function should be called with the result of the function call.
Send a Message
The Copilot can also send messages directly to the Chainlit server. This is useful for sending context information or user actions to the Chainlit server (like the user selected from cell A1 to B1 on a table).
First, update the @cl.on_message
decorated function to your Chainlit server:
import chainlit as cl
@cl.on_message
async def on_message(msg: cl.Message):
if cl.context.session.client_type == "copilot":
if msg.type == "system_message":
# do something with the message
return
fn = cl.CopilotFunction(name="test", args={"msg": msg.content})
res = await fn.acall()
await cl.Message(content=res).send()
Then, in your app/website, you can emit an event like this:
window.sendChainlitMessage({
type: "system_message",
output: "Hello World!",
});
Security
Cross Origin Resource Sharing (CORS)
Don’t forget to add the origin of the host website to the allow_origins config field to a list of allowed origins.
Authentication
If you want to authenticate users on the Copilot, you can enable authentication on the Chainlit server.
If the Chainlit app and the host website are deployed on different domains,
you will have to add CHAINLIT_COOKIE_SAMESITE=none
to the Chainlit app env
variables.
While the standalone Chainlit application handles the authentication process, the Copilot needs to be configured with an access token. This token is used to authenticate the user with the Chainlit server.
The host app/website is responsible for generating the token and passing it to the as accessToken
. Here are examples of how to generate the token in different languages:
import jwt
from datetime import datetime, timedelta
CHAINLIT_AUTH_SECRET = "your-secret"
def create_jwt(identifier: str, metadata: dict) -> str:
to_encode = {
"identifier": identifier,
"metadata": metadata,
"exp": datetime.utcnow() + timedelta(minutes=60 * 24 * 15), # 15 days
}
encoded_jwt = jwt.encode(to_encode, CHAINLIT_AUTH_SECRET, algorithm="HS256")
return encoded_jwt
access_token = create_jwt("user-1", {"name": "John Doe"})
